Introduction to SPIHT

This page presents the powerful wavelet-based image compression method called Set Partitioning in Hierarchical Trees (SPIHT). This award-winning method has received worldwide acclaim and attention since its introduction in 1995. Thousands of people, researchers and consumers alike, have now tested and used SPIHT. It has become the benchmark state-of-the-art algorithm for image compression.

The SPIHT method is not a simple extension of traditional methods for image compression, and represents an important advance in the field. The method deserves special attention because it provides the following:

  Highest Image Quality
  Progressive image transmission
  Fully embedded coded file
  Simple quantization algorithm
  Fast coding/decoding
  Completely adaptive
  Lossless compression
  Exact bit rate coding
  Error protection

Each of these properties is discussed below. Note that different compression methods were developed specifically to achieve at least one of those objectives. What makes SPIHT really outstanding is that it yields all those qualities simultaneously. So, if in the future you find one method that claims to be superior to SPIHT in one evaluation parameter (like PSNR), remember to see who wins in the remaining criteria.

Image Quality

Extensive research has shown that the images obtained with wavelet-based methods yield very good visual quality. At first it was shown that even simple coding methods produced good results when combined with wavelets and is the basis for the most recently JPEG2000 standard.  However, SPIHT belongs to the next generation of wavelet encoders, employing more sophisticated coding. In fact, SPIHT exploits the properties of the wavelet-transformed images to increase its efficiency.

Original (117KB) 10:1
200:1 1000:1 (1181 bytes)


Many researchers now believe that encoders that use wavelets are superior to those that use DCT or fractals. We will not discuss the matter of taste in the evaluation of low quality images, but we do want to say that SPIHT wins in the test of finding the minimum rate required to obtain a reproduction indistinguishable from the original. The SPIHT advantage is even more pronounced in encoding color images, because the bits are allocated automatically for local optimality among the color components, unlike other algorithms that encode the color components separately based on global statistics of the individual components. You will be amazed to see that visually lossless color compression is obtained with some images at compression ratios from 100-200:1.  Visit http://www.archive1.com to view favorable comparisons of SPIHT to JPEG2000 for your favorite color images.

If, after what we said, you are still not certain that you should believe us (because in the past you heard claims like that and then were deeply disappointed), we understand you point of view.



Progressive Image Transmission

In some systems with progressive image transmission (like WWW browsers) the quality of the displayed images follows the sequence: (a) weird abstract art; (b) you begin to believe that it is an image of something; (c) CGA-like quality; (d) lossless recovery. With very fast links the transition from (a) to (d) can be so fast that you will never notice. With slow links (how "slow" depends on the image size, colors, etc.) the time from one stage to the next grows exponentially, and it may take hours to download a large image. Considering that it may be possible to recover an excellent-quality image using 10-20 times less bits, it is easy to see the inefficiency. Furthermore, the mentioned systems are not efficient even for lossless transmission.

The problem is that such widely used schemes employ a very primitive progressive image transmission method. On the other extreme, SPIHT is a state-of-the-art method that was designed for optimal progressive transmission (and still beats most non-progressive methods!). It does so by producing a fully embedded coded file (see below), in a manner that at any moment the quality of the displayed image is the best available for the number of bits received up to that moment.

So, SPIHT can be very useful for applications where the user can quickly inspect the image and decide if it should be really downloaded, or is good enough to be saved, or need refinement.

Optimized Embedded Coding

A strict definition of the embedded coding scheme is: if two files produced by the encoder have size M and N bits, with M > N, then the file with size N is identical to the first N bits of the file with size M.

Let's see how this abstract definition is used in practice. Suppose you need to compress an image for three remote users. Each one have different needs of image reproduction quality, and you find that those qualities can be obtained with the image compressed to at least 8 Kb, 30 Kb, and 80 Kb, respectively. If you use a non-embedded encoder (like JPEG), to save in transmission costs (or time) you must prepare one file for each user. On the other hand, if you use an embedded encoder (like SPIHT) then you can compress the image to a single 80 Kb file, and then send the first 8 Kb of the file to the first user, the first 30 Kb to the second user, and the whole file to the third user.

But what is the price to pay for this "amenity"? Surprisingly, with SPIHT all three users would get (for the same file size) an image quality comparable or superior to the most sophisticated non-embedded encoders available today. SPIHT achieves this feat by optimizing the embedded coding process and always coding the most important information first.

An even more important application is for progressive image transmission, where the user can decide at which point the image quality satisfies his needs, or abort the transmission after a quick inspection, etc.

Compression Algorithm

Various paper describing SPIHT is available via anonymous ftp. Here we take the opportunity to comment how it is different from other approaches.  The following is a comparison of image quality and artifacts at high compression ratios versus JPEG.

Original

SPIHT

JPEG

SPIHT represents a small "revolution" in image compression because it broke the trend to more complex (in both the theoretical and the computational senses) compression schemes. While researchers had been trying to improve previous schemes for image coding using very sophisticated vector quantization, SPIHT achieved superior results using the simplest method: uniform scalar quantization. Thus, it is much easier to design fast SPIHT codecs.



Encoding/Decoding Speed

The SPIHT process represents a very effective form of entropy-coding. This is shown by the demo programs using two forms of coding: binary-uncoded (extremely simple) and context-based adaptive arithmetic coded (sophisticated). Surprisingly, the difference in compression is small, showing that it is not necessary to use slow methods (and also pay royalties for them!). A fast version using Huffman codes was also successfully tested, but it is not publicly available.

A straightforward consequence of the compression simplicity is the greater coding/decoding speed. The SPIHT algorithm is nearly symmetric, i.e., the time to encode is nearly equal to the time to decode. (Complex compression algorithms tend to have encoding times much larger than the decoding times.)

Some of our demo programs use floating-point operations extensively, and can be slower in some CPUs (floating points are better when people want to test you programs with strange 16 bpp images). However, this problem can be easily solved: try the lossless version to see an example. Similarly, the use for progressive transmission requires a somewhat more complex and slower algorithm. Some shortcuts can be used if progressive transmission is not necessary.

When measuring speed please remember that these demo programs were written for academic studies only, and were not fully optimized as are the commercial versions.

Applications

SPIHT exploits properties that are present in a wide variety of images. It had been successfully tested in natural (portraits, landscape, weddings, etc.) and medical (X-ray, CT, etc) images. Furthermore, its embedded coding process proved to be effective in a broad range of reconstruction qualities. For instance, it can code fair-quality portraits and high-quality medical images equally well (as compared with other methods in the same conditions).

SPIHT has also been tested for some less usual purposes, like the compression of elevation maps, scientific data, and others.



Lossless Compression

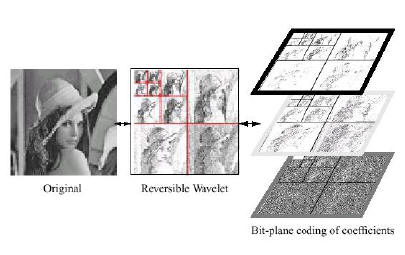

SPIHT codes the individual bits of the image wavelet transform coefficients following a bit-plane sequence. Thus, it is capable of recovering the image perfectly (every single bit of it) by coding all bits of the transform. However, the wavelet transform yields perfect reconstruction only if its numbers are stored as infinite-precision numbers. In practice it is frequently possible to recover the image perfectly using rounding after recovery, but this is not the most efficient approach.

For lossless compression we proposed an integer multiresolution transformation, similar to the wavelet transform, which we called S+P transform (see papers). It solves the finite-precision problem by carefully truncating the transform coefficients during the transformation (instead of after).

A codec that uses this transformation to yield efficient progressive transmission up to lossless recovery is among the SPIHT demo programs. A surprising result obtained with this codec is that for lossless compression it is as efficient as the most effective lossless encoders (lossless JPEG is definitely not among them). In other words, the property that SPIHT yields progressive transmission with practically no penalty in compression efficiency applies to lossless compression too.  Below are examples of Lossless and lossy (200:1) images decoded from the same file.



Rate or Distortion Specification

Almost all image compression methods developed so far do not have precise rate control. For some methods you specify a target rate, and the program tries to give something that is not too far from what you wanted. For others you specify a "quality factor" and wait to see if the size of the file fits your needs. (If not, just keep trying...)

The embedded coding property of SPIHT allows exact bit rate control, without any penalty in performance (no bits wasted with padding, or whatever). The same property also allows exact mean squared-error (MSE) distortion control. Even though the MSE is not the best measure of image quality, it is far superior to other criteria used for quality specification.

Error Protection

Errors in the compressed file cause havoc for practically all important image compression methods. This is not exactly related to variable length entropy-coding, but to the necessity of using context generation for efficient compression. For instance, Huffman codes have the ability to quickly recover after an error. However, if it is used to code run-lengths, then that property is useless because all runs after an error would be shifted.

SPIHT is not an exception for this rule. One difference, however, is that due to SPIHT's embedded coding property, it is much easier to design efficient error-resilient schemes.

This happens because with embedded coding the information is sorted according to its importance, and the requirement for powerful error correction codes decreases from the beginning to the end of the compressed file. If an error is detected, but not corrected, the decoder can discard the data after that point and still display the image obtained with the bits received before the error. Also, with bit-plane coding the error effects are limited to below the previously coded planes.

Another reason is that SPIHT generates two types of data. The first is sorting information, which needs error protection as explained above. The second consists of uncompressed sign and refinement bits, which do not need special protection because they affect only one pixel.

While SPIHT can yield gains like 3 dB PSNR over methods like JPEG, its use in noisy channels, combined with error protection as explained above, leads to much larger gains, like 6-12 dB. (Such high coding gains are frequently viewed with skepticism, but they do make sense for combined source-channel coding schemes.)

SPIHT Optimized Algorithm

The the following are the suite of application specific SPIHT compression products:

D-SPIHT  (Dynamic)

The D-SPIHT software is capable of the most efficient compression of monochrome, 1 and 2 byte per pel, and color images.  It has the features of specifying bit rate or quality at encoding time.  For bit rate specification, the compressed file is completely and finely rate-embedded.  Rate-embedded means that any lower rate D-SPIHT file is a subset of the full file and can be decoded to the given smaller rate.  The decoding has the special feature of producing smaller resolution image reconstructions (such as thumbnails) directly from the compressed file without offline processing.



S-SPIHT  (Striped)

The S-SPIHT software shares many features of D-SPIHT, but it works with a small memory.  The small memory leads to a slight degradation in performance compared to D-SPIHT.   Therefore, this software is ideal for compression of very large images, such as those from GIS and remote sensing systems.  It is both efficient and fast.  A good strategy for compression of image of any size is to use a combination of  D-SPIHT and S-SPIHT, with S-SPIHT taking over from D-SPIHT when an image dimension exceeds 1024 or 2048.



T-SPIHT  (Tiled)

T-SPIHT is a specially designed form of SPIHT that compresses large images in tiles.  Remote sensing, geographical, and meteorological data are often handled in tiles rather than all at once.  Therefore, systems for processing such data would prefer to use a compression by tiles.  T-SPIHT can efficiently compress, with constant quality and without tile boundary artifacts, large image or data sets, whether in tile format or not.  In fact, the compression is significantly more efficient than JPEG2000 in its tiled compression mode.



P-SPIHT  (Photo-ID)

P-SPIHT is especially designed to efficiently compress small grayscale and color images.  It is more efficient in this application than JPEG2000 or any other competing software.  It is ideal for storage of photo IDís on plastic cards with magnetic strips.



PROGRES  (Progressive Resolution Decompression)

PROGRES is a progressive resolution, extremely fast version of SPIHT that has full capability of random access decoding.  It chooses a quality factor for lossy compression of any size image and can decompress a given arbitrary region to any resolution very quickly.  It comes either in a command line version for WINDOWS/DOS or UNIX (or Linux) or with additional region-of-interest (ROI) encoding and decoding in a UNIX (or Linux) GUI version.   It is an excellent choice for remote sensing and GIS applications, where rapid browsing of large images is necessary.



PROGCODE (Lossless & Progressive)

PROGCODE is our pioneering progressive lossy to purely lossless (reversible) greyscale compression algorithm.  It sets the standard for lossless compression.   For larger images, the compression is still efficient, but the larger memory utilization slows down execution. This algorithm can efficiently compress medical images either lossless or with any desired rate.  Moreover, the lossless file can act as an archive in a file server, from within which any desired lossy lower rate file can be extracted and decompressed directly without offline processing.  This software is also ideal for multi-user storage or transmission systems, where users with different capabilities and requirements can receive the image to their desired accuracy from a single file or transmission.



SPM   (Fastest Lossless!)

SPM software is especially designed for lossless and lossy compression of medical images.  The method is not based on SPIHT, but on our patented quadrature splitting algorithm called AGP (for Amplitude and Group Partitioning).  SPM calls for a quality factor, with 0 giving perfectly lossless compression.  Because the intended application is medical images, the allowed lossy compression adheres to degrees of high quality.  The outstanding characteristics of SPM, besides efficiency, are very fast compression and decompression, regardless of image size.    It comes either in a command line version for WINDOWS/DOS or UNIX (or Linux) or in a WINDOWS GUI version.  All versions allow reduced resolution decoding from a single compressed file.
